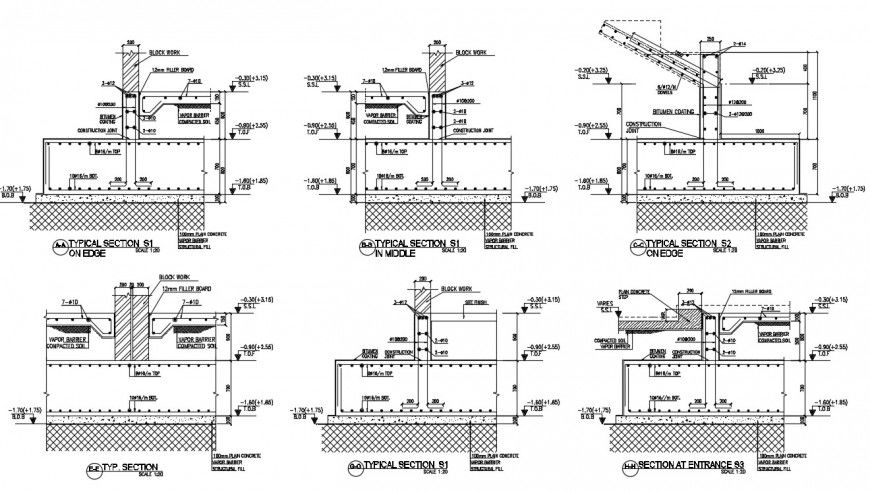

2d structural drawings details RCC combined footing dwg file


Description

2d structural drawings details RCC combined footing dwg file that includes foundation footing details with reinforcement details in tension and compression zone along with main and distribution hook up and bent up bars details. Stirrups are provided to hold up bars in position and effective clear cover details also included in drawings. The structure is a reinforced concrete cement (RCC) structure.




File Type: DWG File ID: 73733

Uploaded by:


Eiz Luna
New-Zealand
